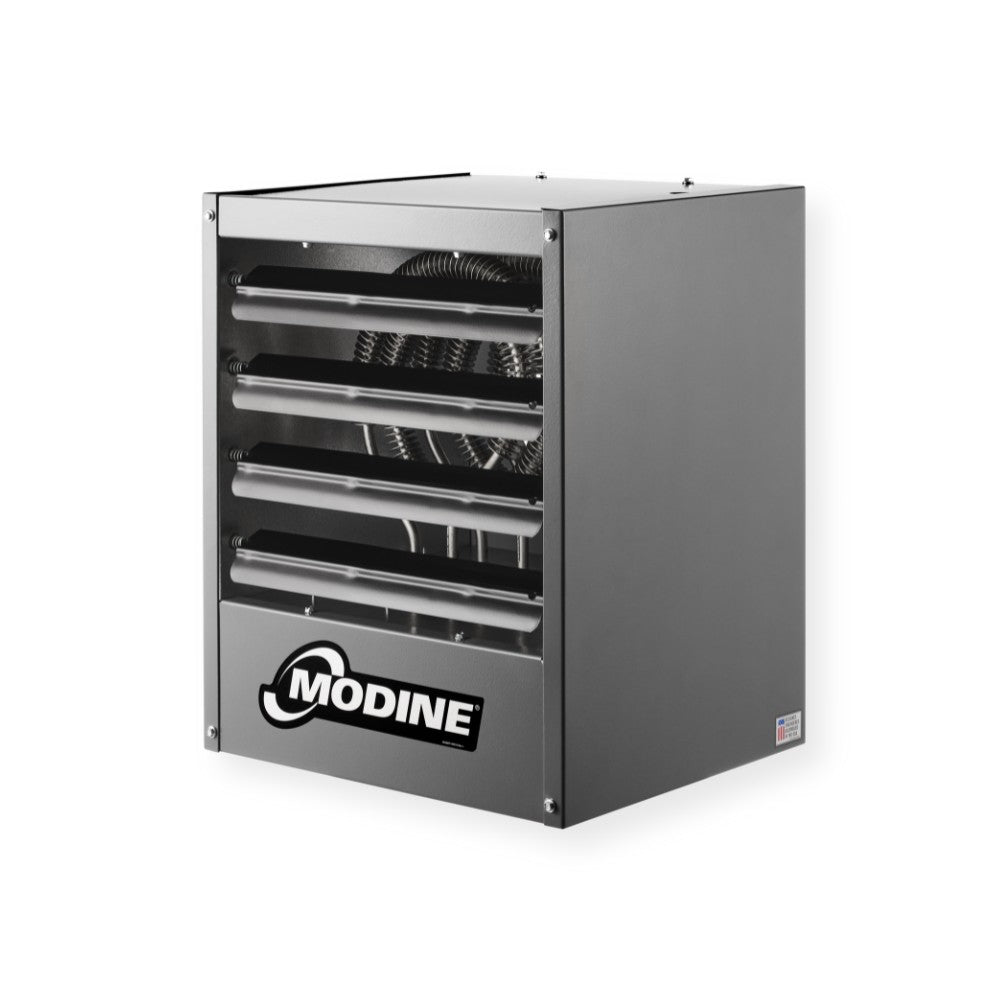

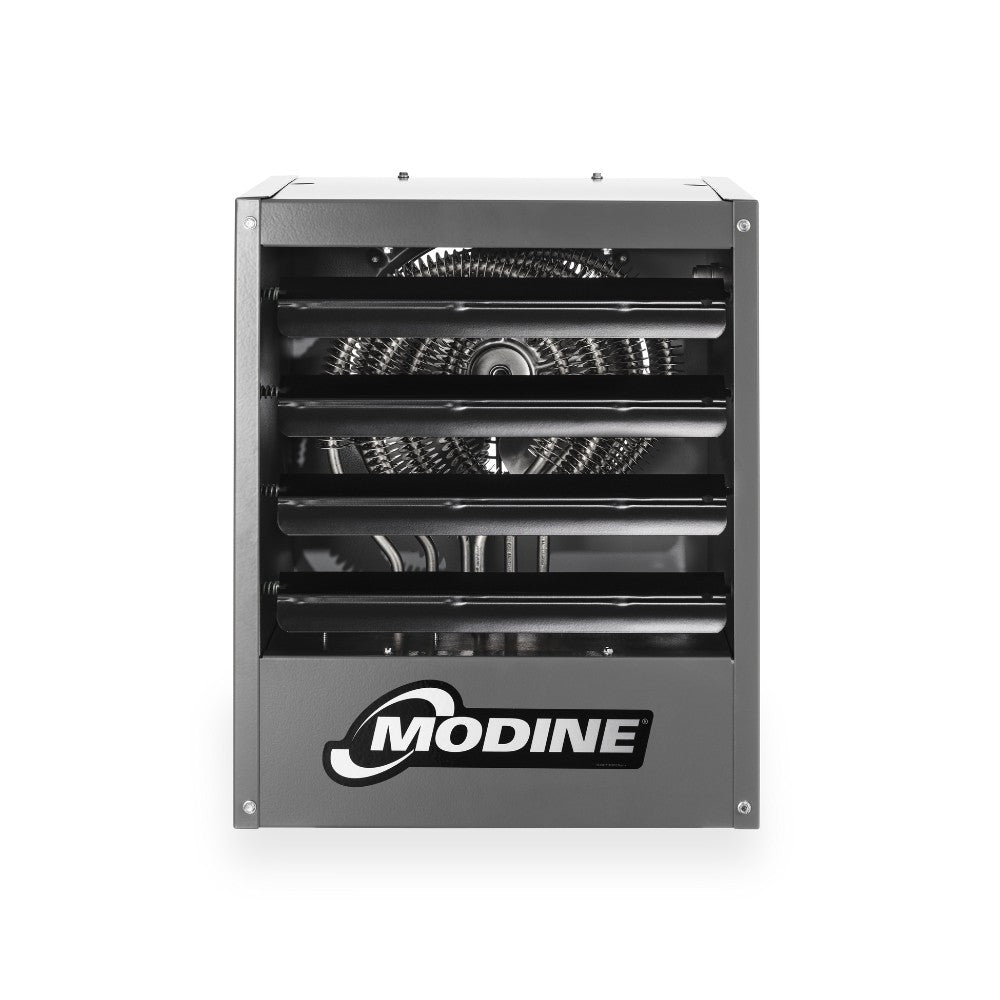

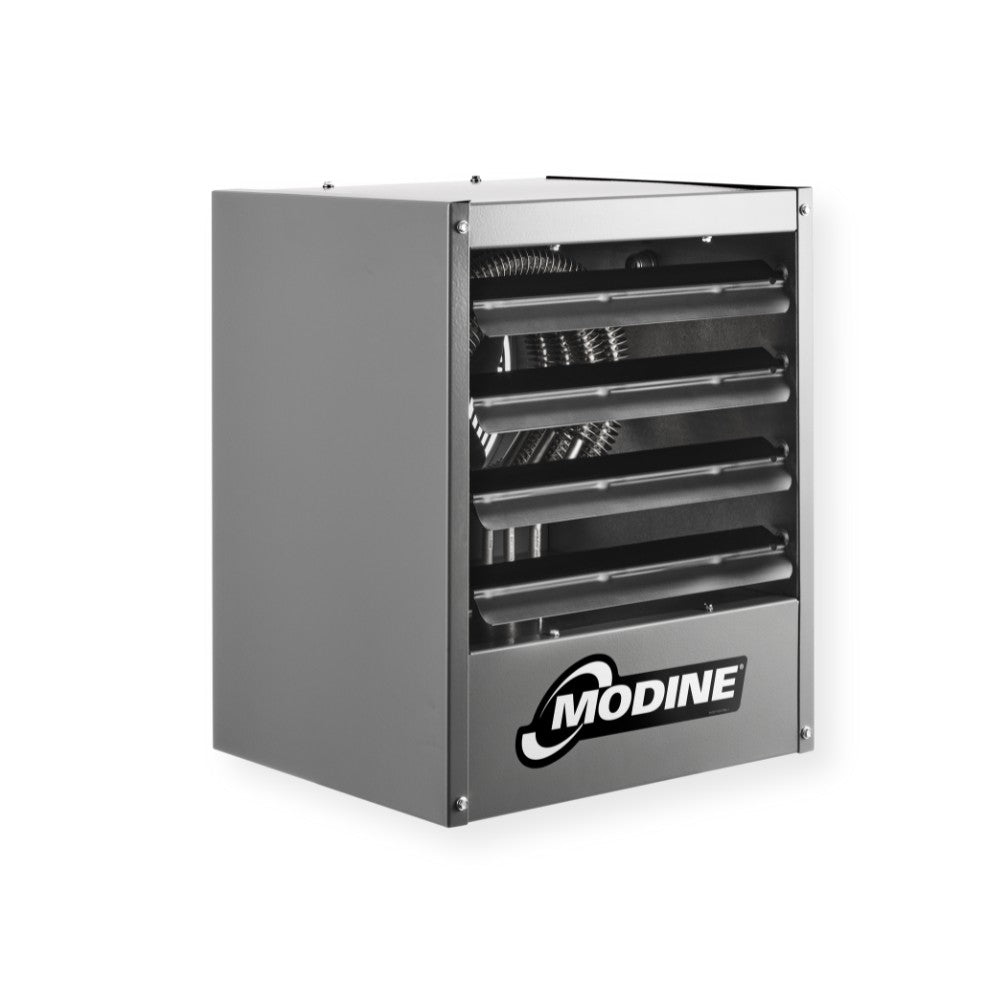

Model HER Horizontal Delivery Heaters: Recommended for use in greenhouses or buildings where ceilings are low and with few obstructions. Units are equipped with air deflector blades that can be adjusted to lengthen or shorten heat throw as well as to direct heated air up or down. Units are normally placed around the perimeter of the structure so that the air stream from each heater "wipes" the wall to produce a blanket of warm air along the building's outside walls where heat loss is greatest.
Standard Features
Low Installation Cost
Terminal blocks are supplied to facilitate connection of power supply and control wiring. Heaters are lightweight and usually require no special reinforcement to suspend them. Easy to install - just hang the heater, connect to power supply, controls and thermostat and it is ready to operate.
Dependability
Heating elements are resistant to thermal shock and vibration for a long, trouble-free life.
Application Flexibility
Equipped with adjustable horizontally positioned air deflector blades (HER units) to allow complete control over the air discharged by the unit.
Quiet Operation

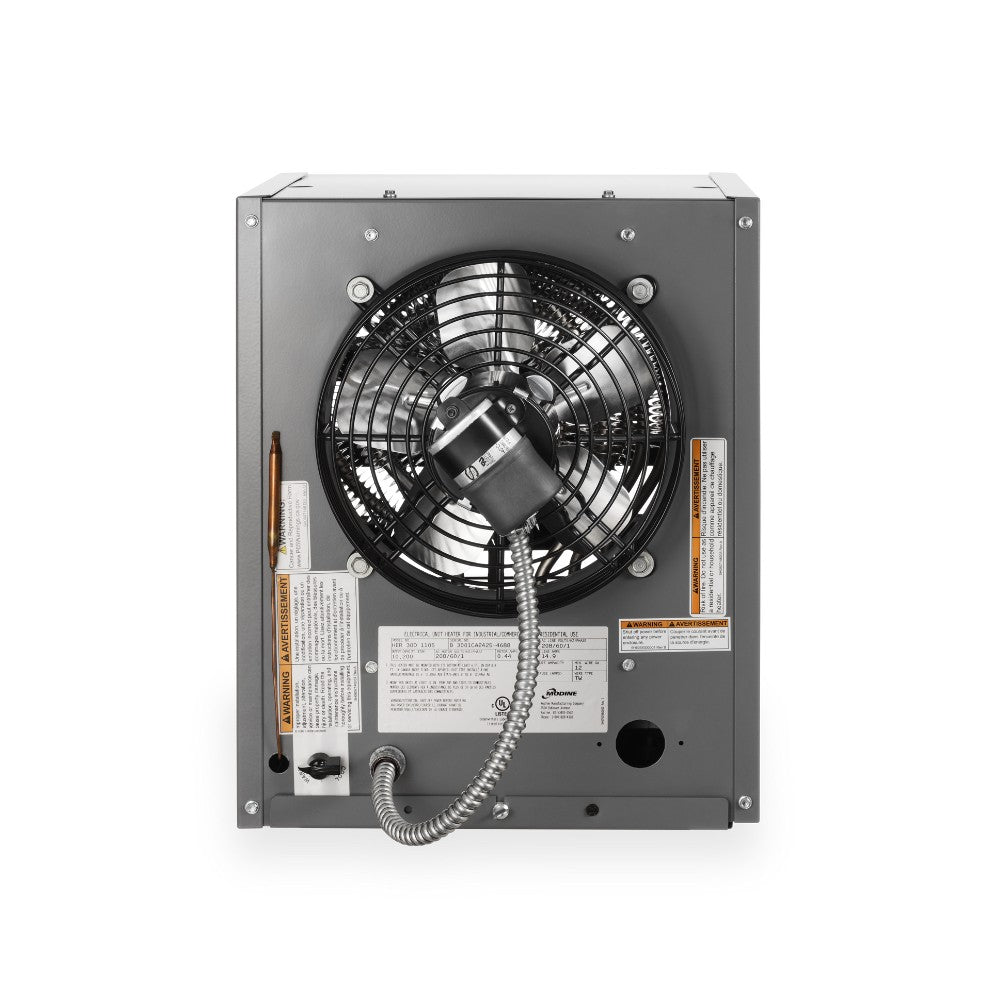

Fans are accurately balanced to move air quietly. Motors mounted to fan guards utilize rubber vibration absorbing material for quieter operation.
Low Maintenance
Motors are totally enclosed, permanently lubricated, and thermally protected. Electrical contactors, fuses and transformers are all safety enclosed in control compartments.
Easy to Service
Fan and motor are exposed for easy removal without lowering the unit heater. Hinged bottom panel permits full access to controls.
Dimensions and Diagrams
Dimensions, Diagrams, and Specifications (PDF)
Modine Greenhouse Heating Solutions (PDF)
Performance Specifications
| Item NO. | kW | Btu/hr | Heat Throw (FT) | Temp Rise (°F) |
Airflow (CFM) |
Weight |
|---|---|---|---|---|---|---|
| HER30 | 3.0 | 10,200 | 12 | 25 | 380 | 34 |
| HER50 | 5.0 | 17,100 | 14 | 42 | 380 | 34 |
| HER75 | 7.5 | 25,600 | 14 | 45 | 530 | 52 |
| HER100 | 10.0 | 34,100 | 20 | 38 | 830 | 67 |
| HER125 | 12.5 | 42,700 | 20 | 48 | 830 | 65 |
| HER150 | 15.0 | 51,200 | 20 | 57 | 830 | 74 |
| HER200 | 20.0 | 68,300 | 25 | 49 | 1300 | 97 |
| HER250 | 25.0 | 85,400 | 25 | 61 | 1300 | 98 |
