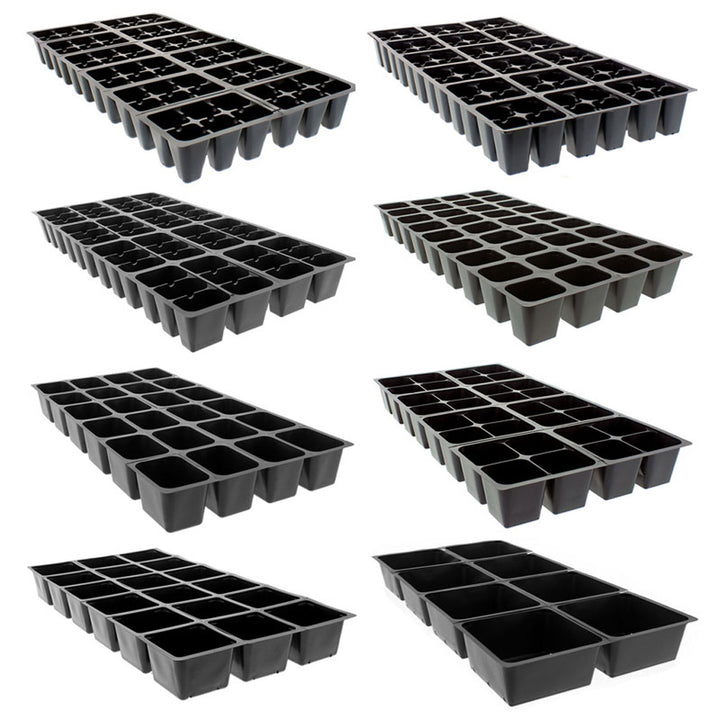

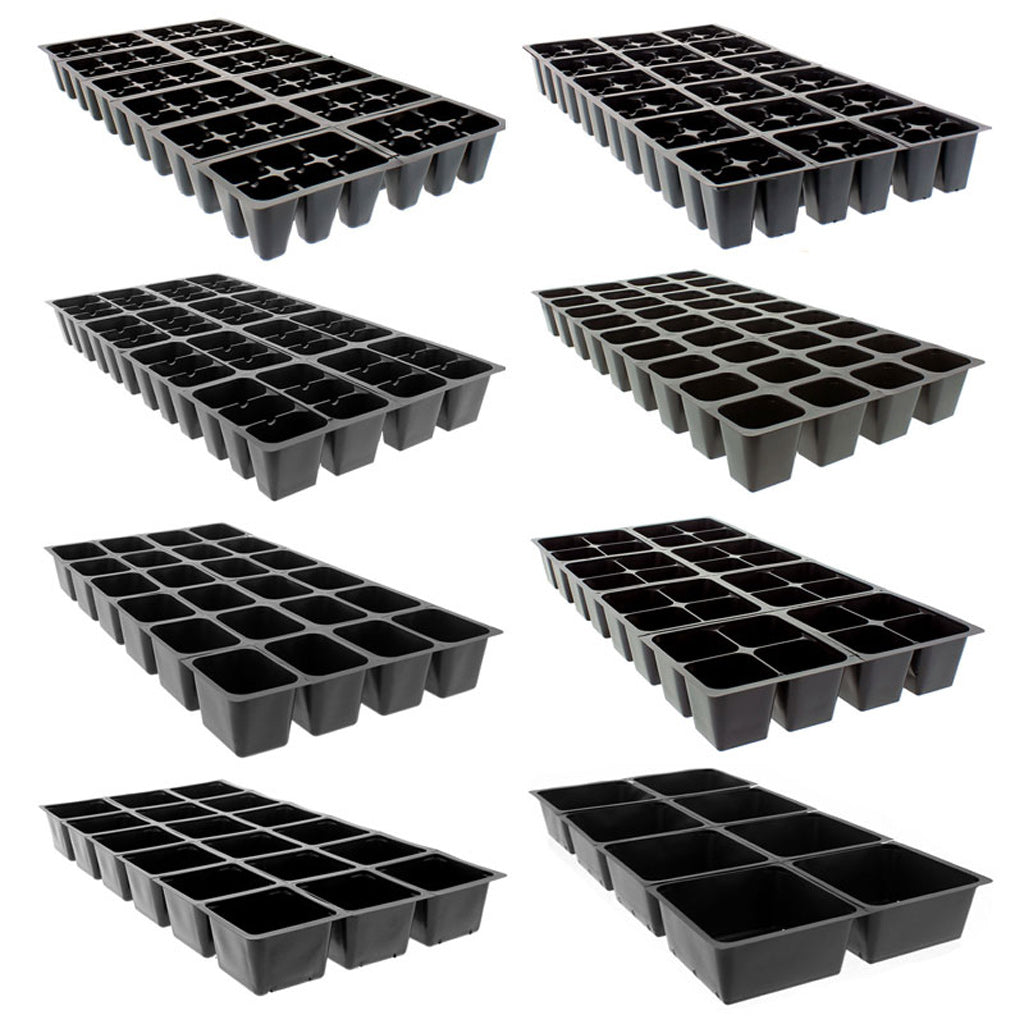

Traditional Series inserts for use with 1020 Trays or 1020 Daisy Trays. Available in a variety of configurations to meet different handling, labeling, and space requirements. Inserts are engineered for easy de-nesting. 10.42" x 20.85" inserts.
Each insert fits one 1020 Tray.
Specifications
# | Cells per pack | Packs per insert | Total cells | Diagram | Cell Length x Width x Depth | Max Dry Volume (cu. in.) | Max Liquid Volume (U.S.) |
---|---|---|---|---|---|---|---|
606 | 6 | 6 | 36 | ![]() |
2.35" x 1.94" x 2.23" | 42.42 | 1.47 (pt) |

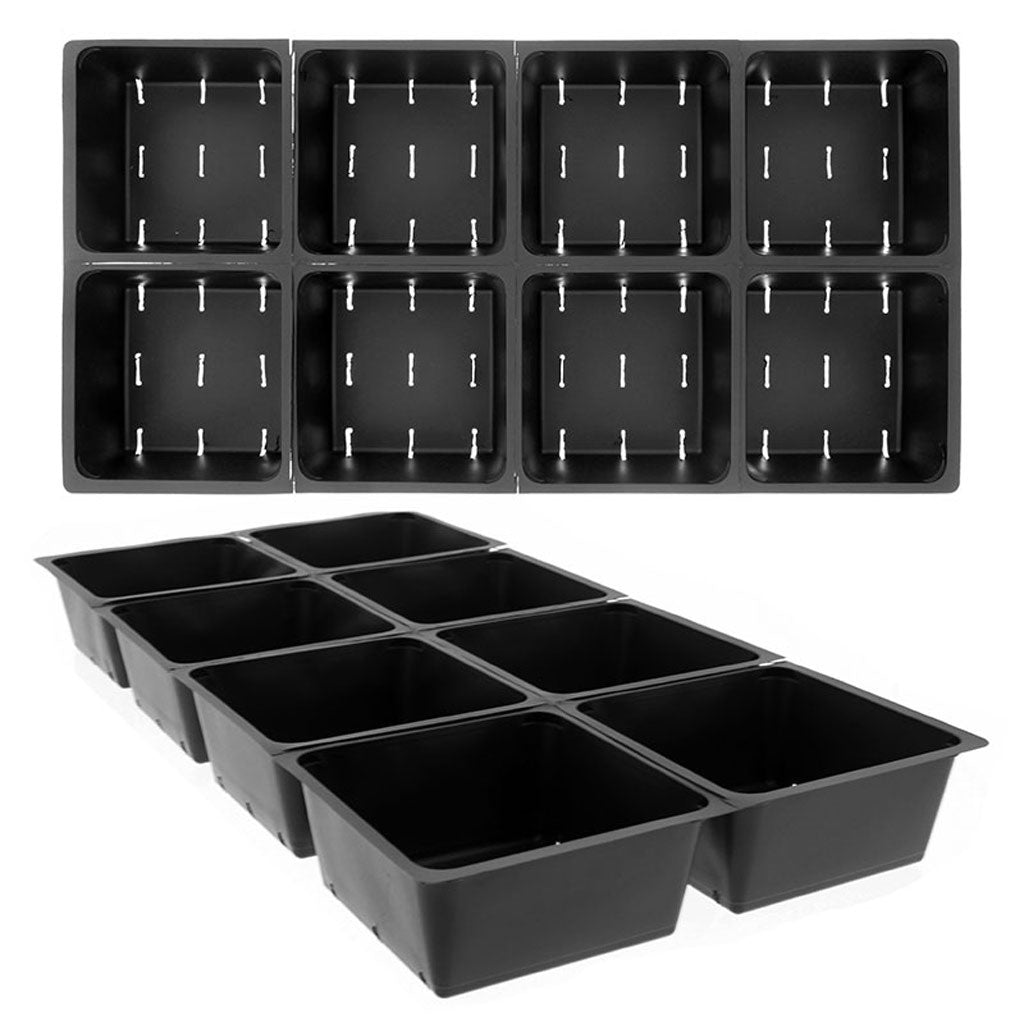

801 | 1 | 8 | 8 | ![]() |
4.86" x 4.86" x 2.27" | 45.65 | 1.58 (pt) |

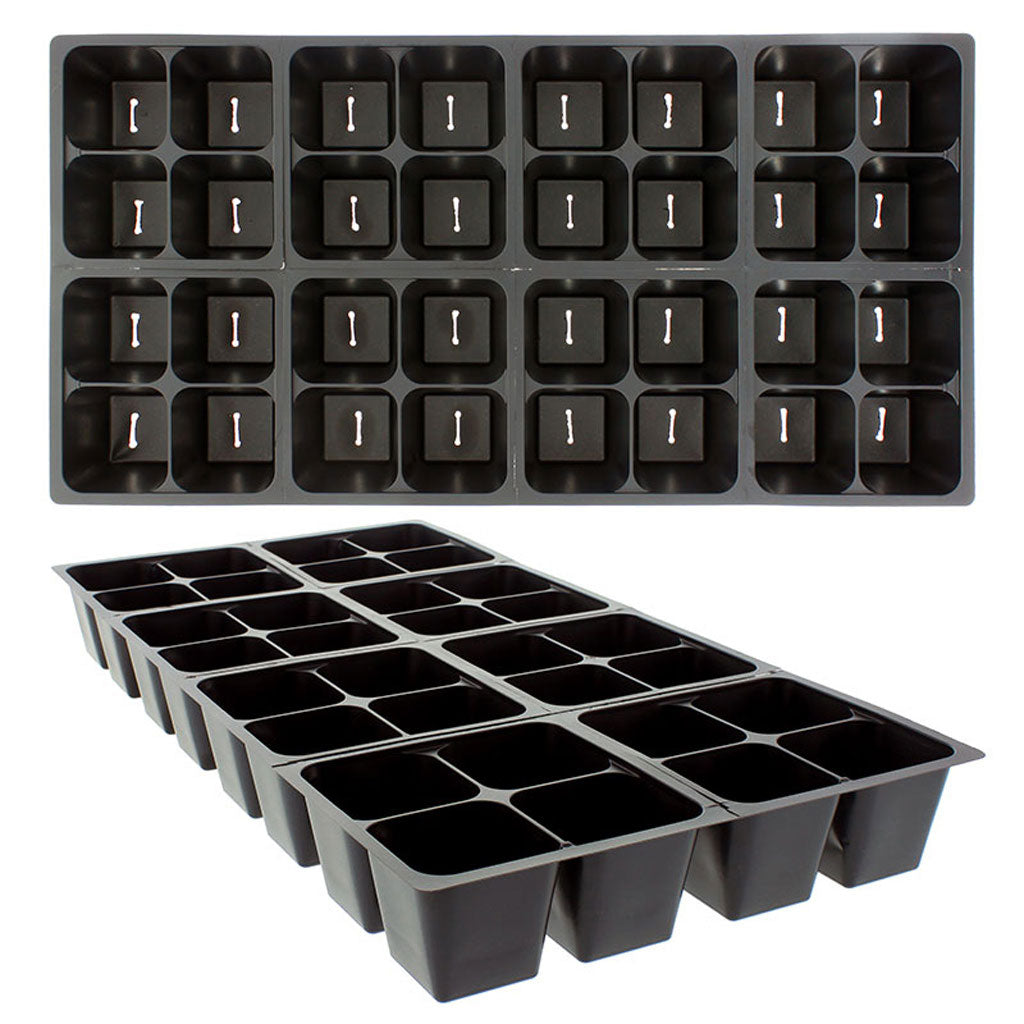

804 | 4 | 8 | 32 | ![]() |
2.40" x 2.40" x 2.23" | 35.52 | 1.23 (pt) |

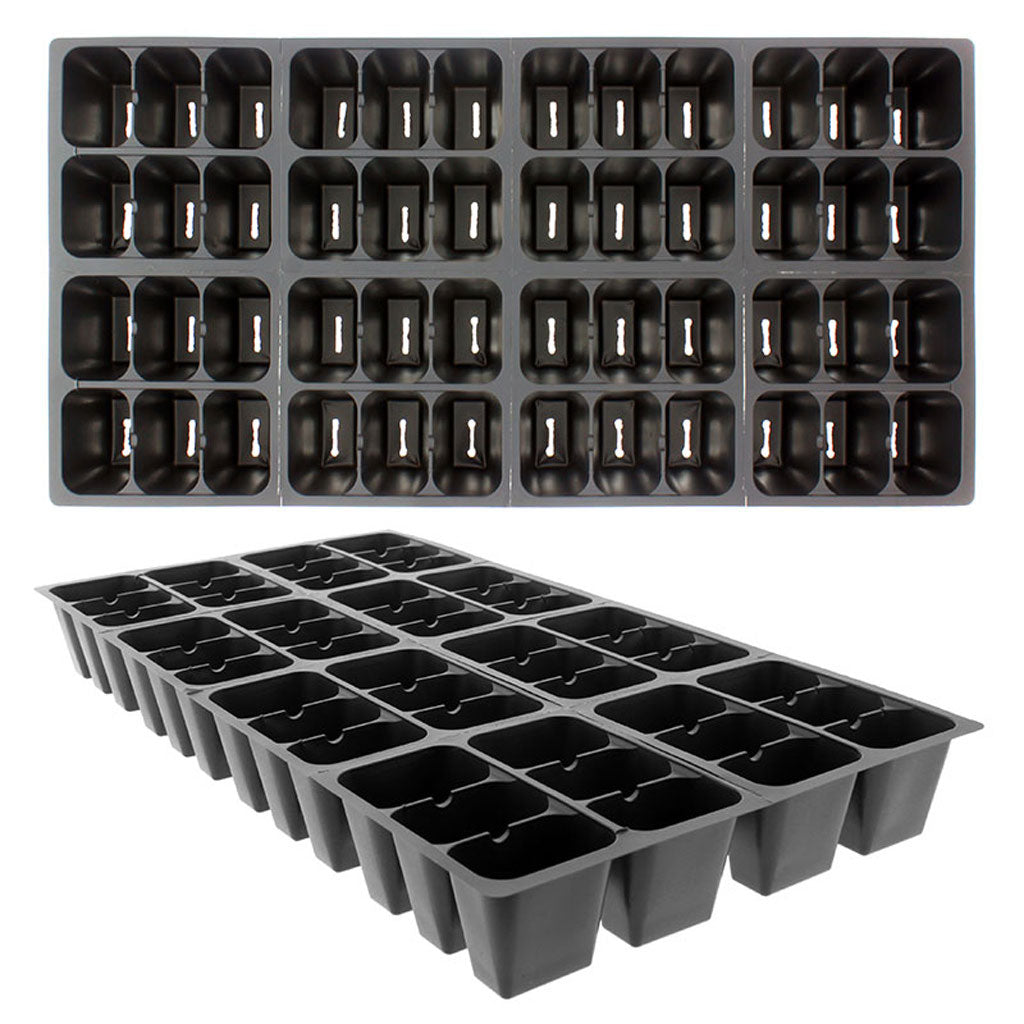

806 | 6 | 8 | 48 | ![]() |
2.38" x 1.50" x 2.25" | 37.68 | 1.30 (pt) |

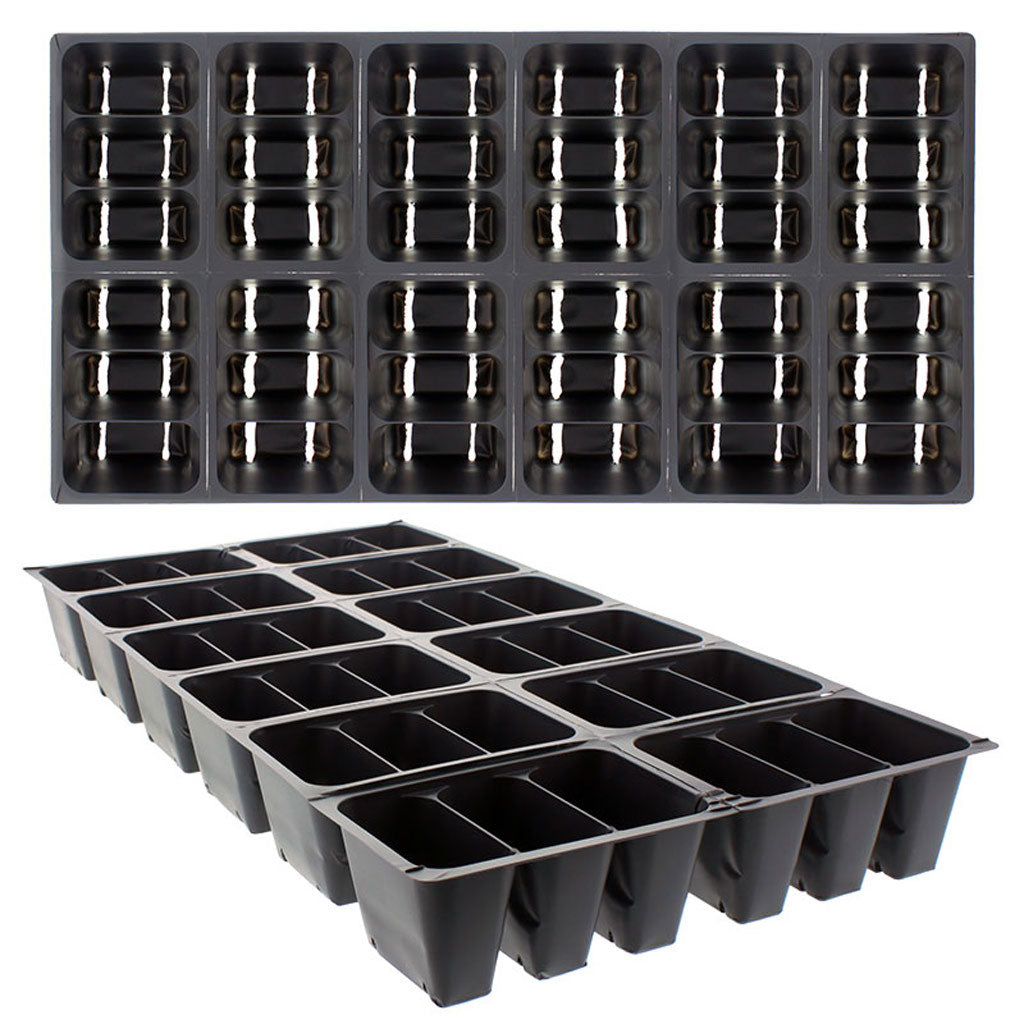

1203 | 3 | 12 | 36 | ![]() |
1.50" x 3.38" x 2.27" | 22.27 | 12.34 (fl.oz.) |

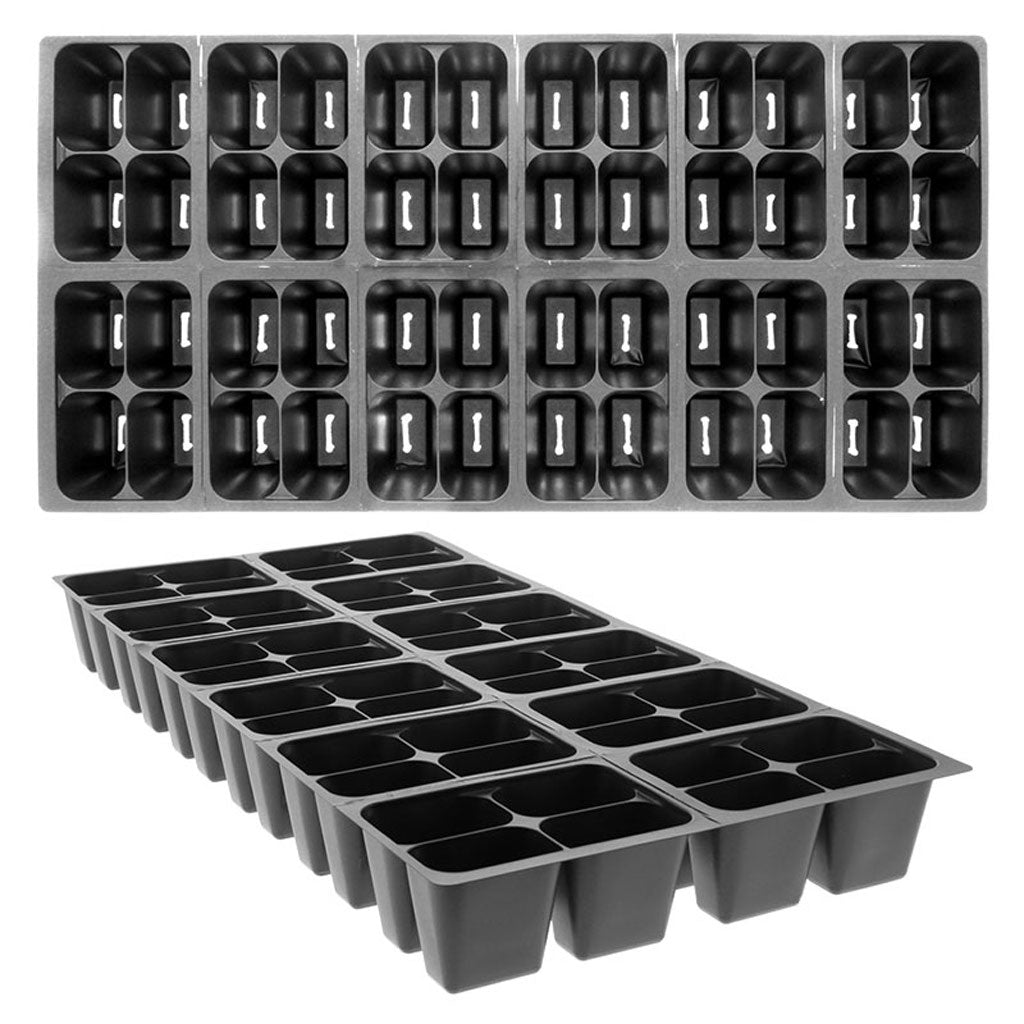

1204 | 4 | 12 | 48 | ![]() |
2.38" x 1.50" x 2.26" | 23.48 | 13.00 (fl. oz.) |

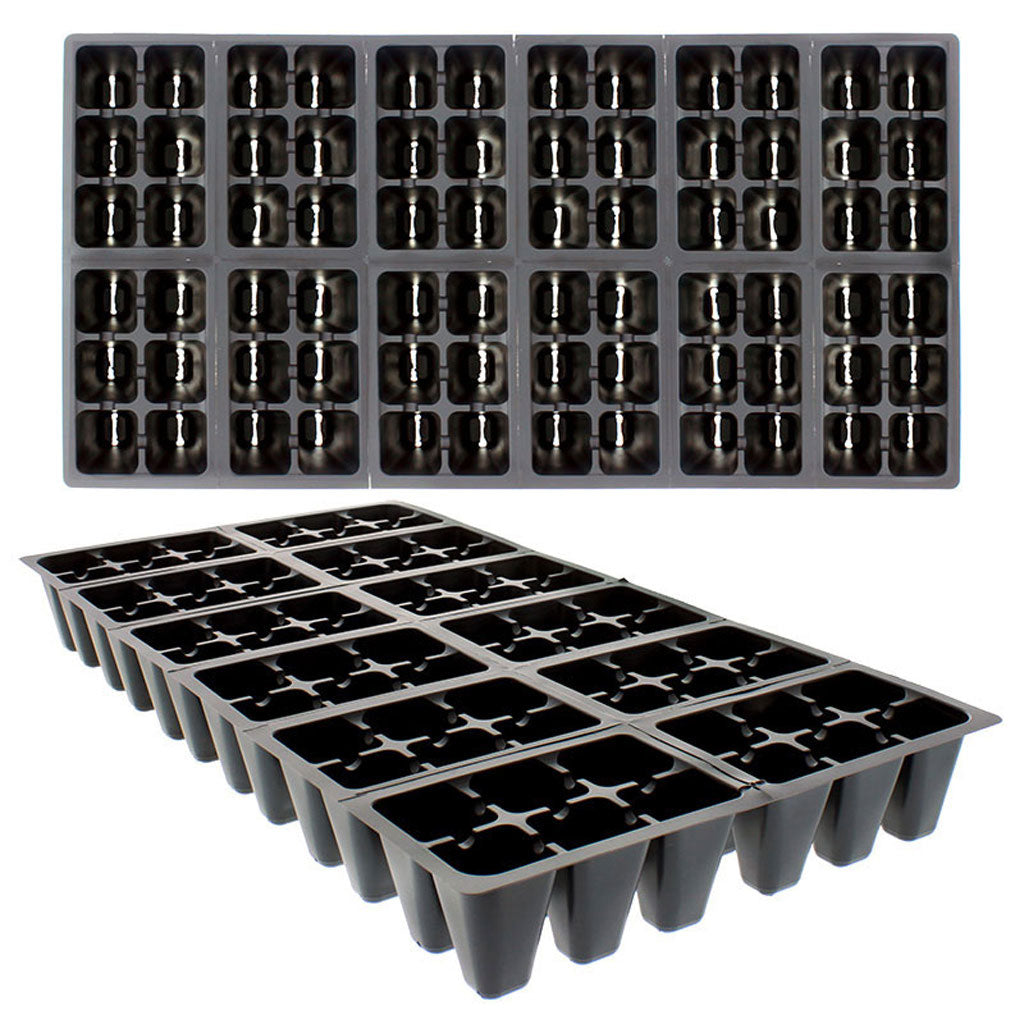

1206 | 6 | 12 | 72 | ![]() |
1.50" x 1.50" x 2.23" | 21.36 | 11.82 (fl. oz.) |

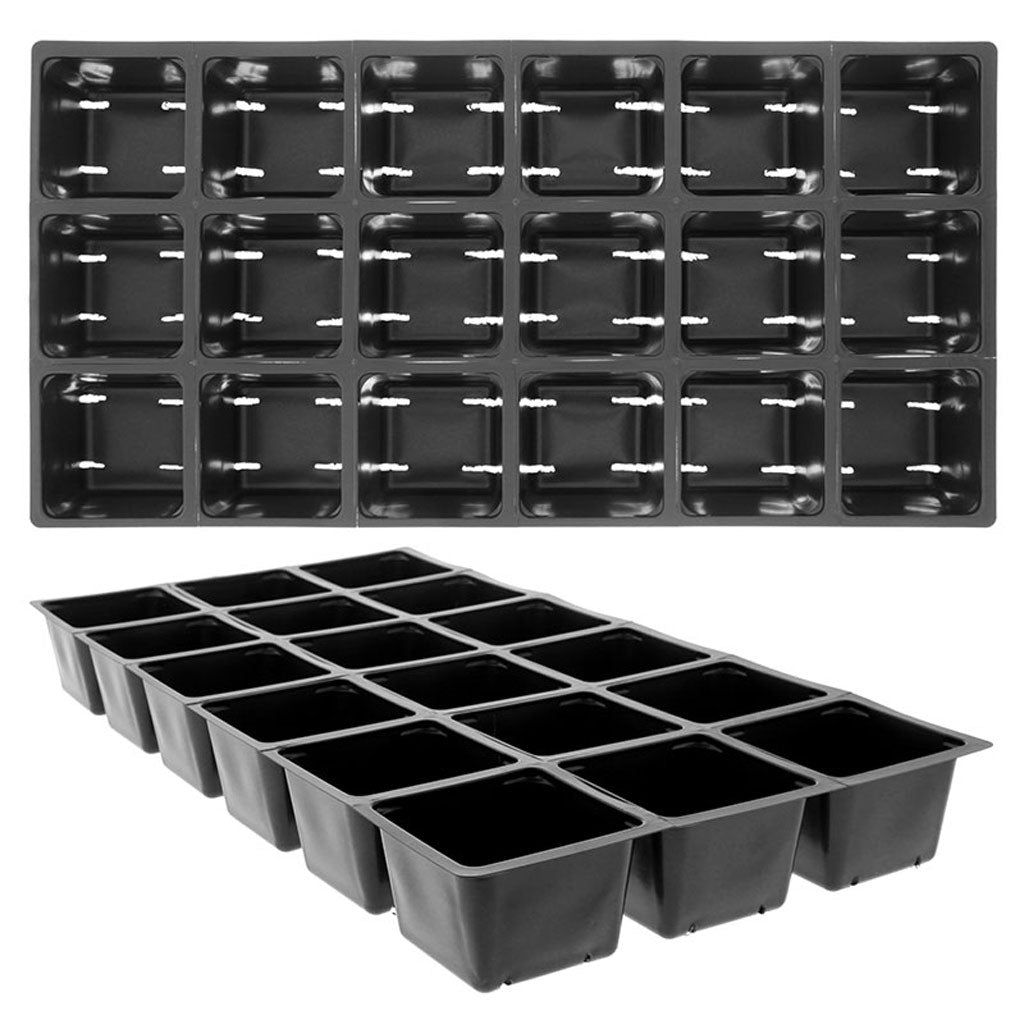

1801 | 1 | 18 | 18 | ![]() |
3.11" x 3.11" x 2.25" | 17.70 | 9.80 (fl. oz.) |

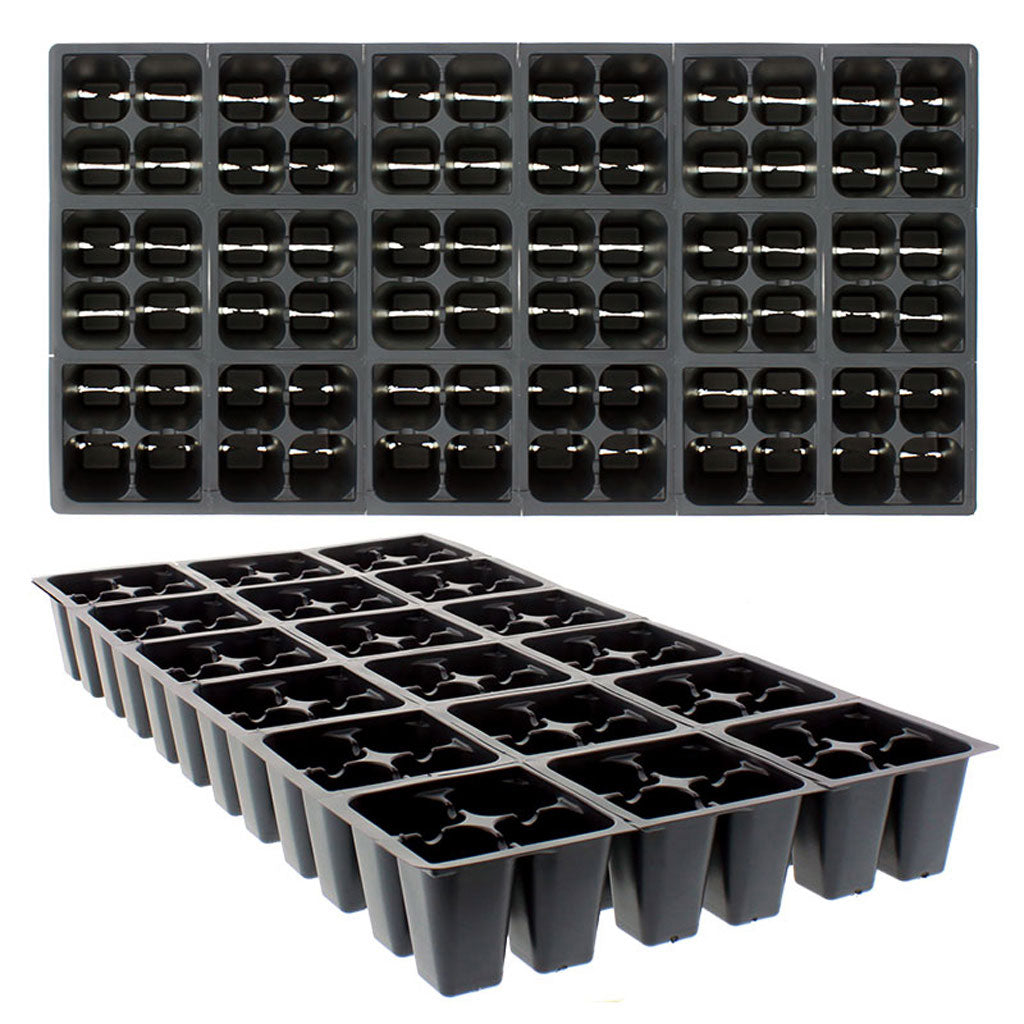

1804 | 4 | 18 | 72 | ![]() |
1.55" x 1.55" x 2.27" | 13.60 | 7.54 (fl. oz.) |

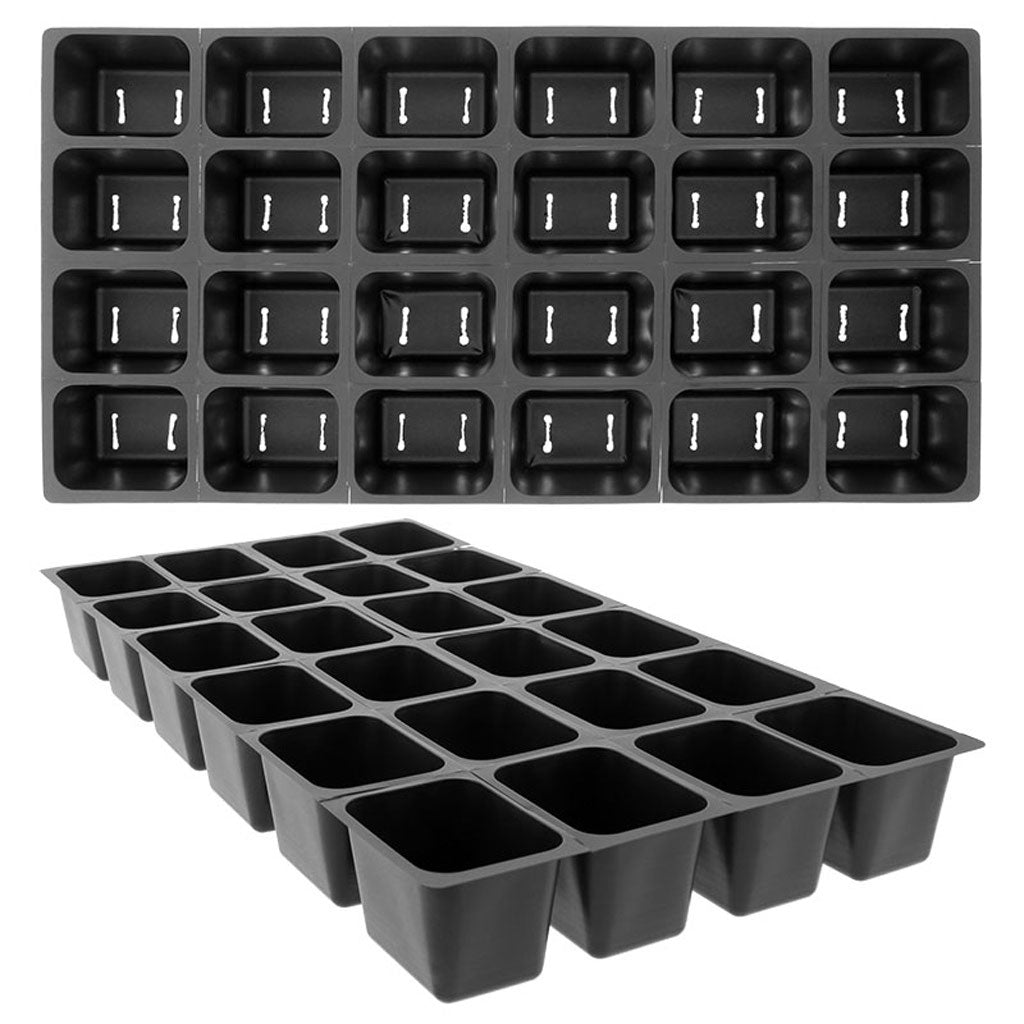

2401 | 1 | 24 | 24 | ![]() |
3.00" x 2.19" x 2.25" | 12.50 | 6.93 (fl. oz.) |

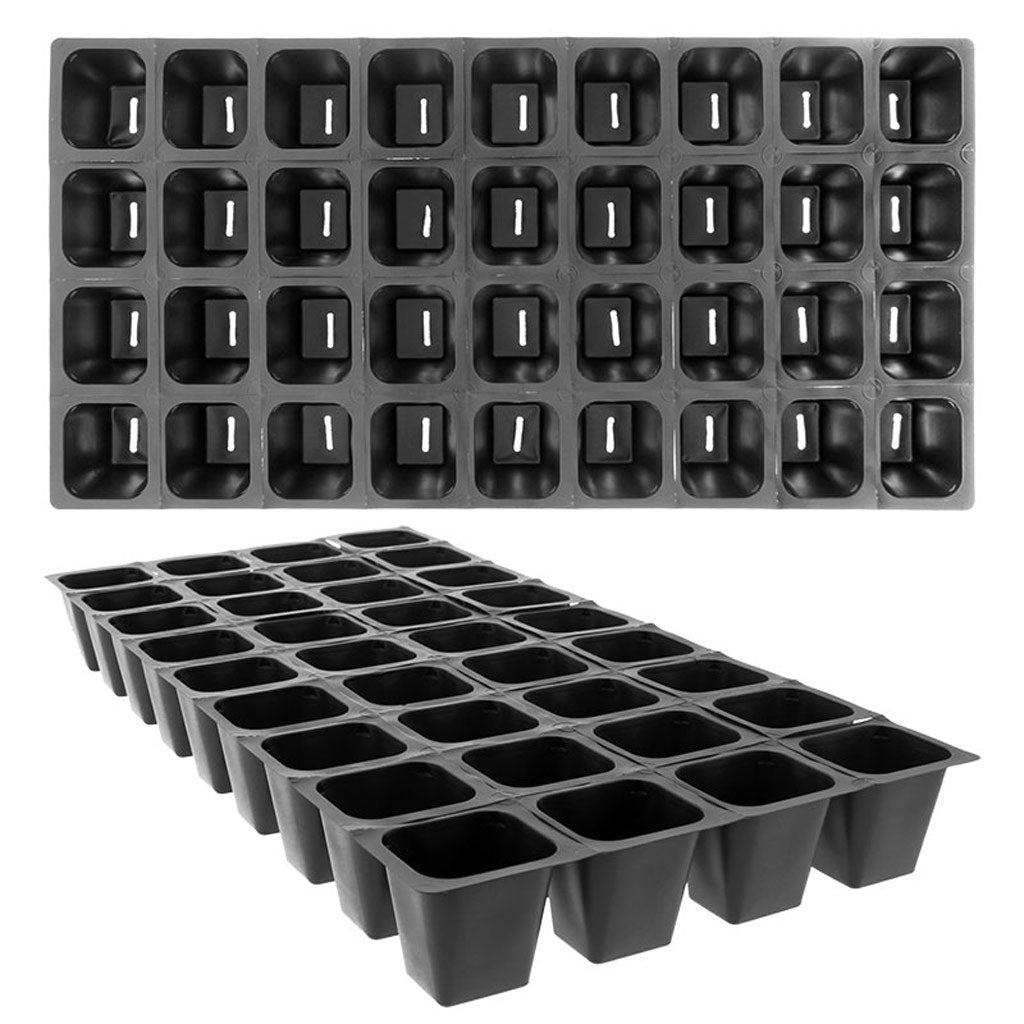

3601 | 1 | 36 | 36 | ![]() |
1.94" x 2.23" x 2.23" | 7.23 | 4.05 (fl oz.) |
