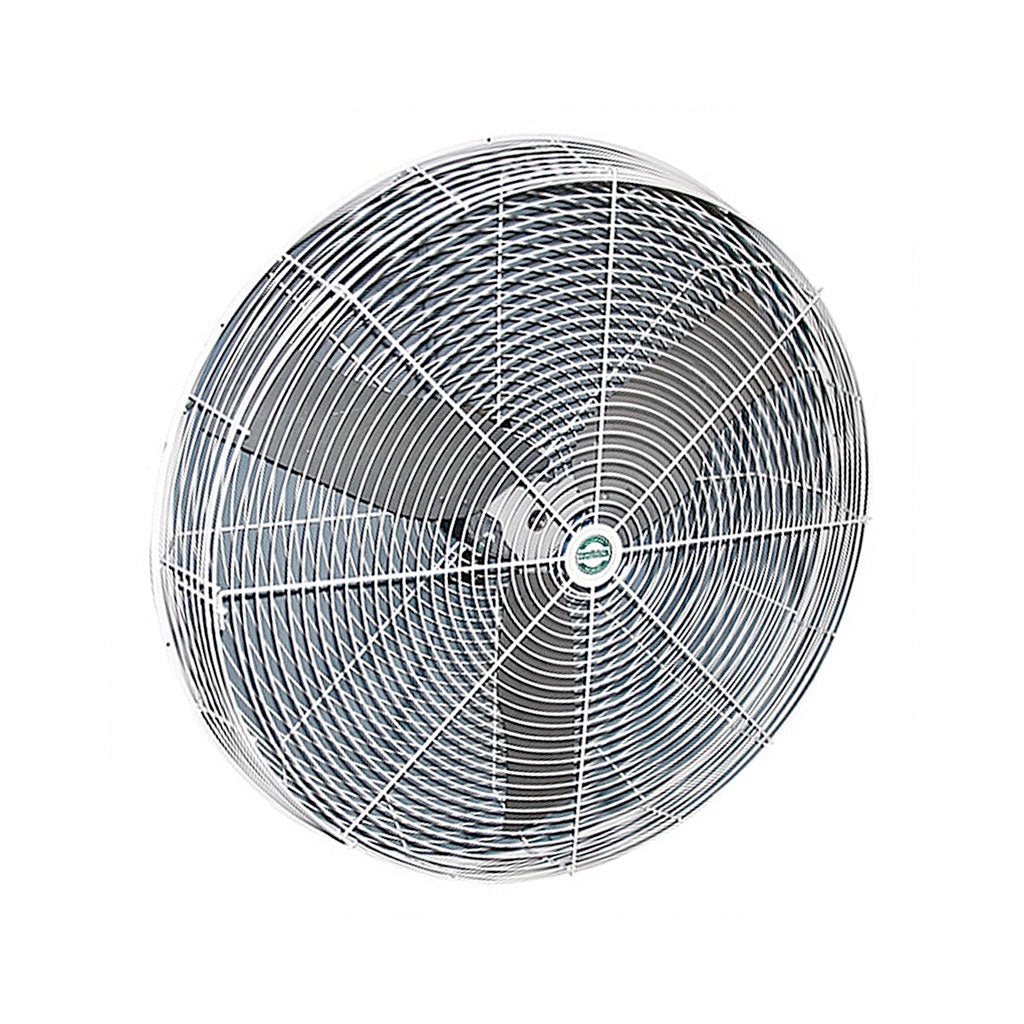

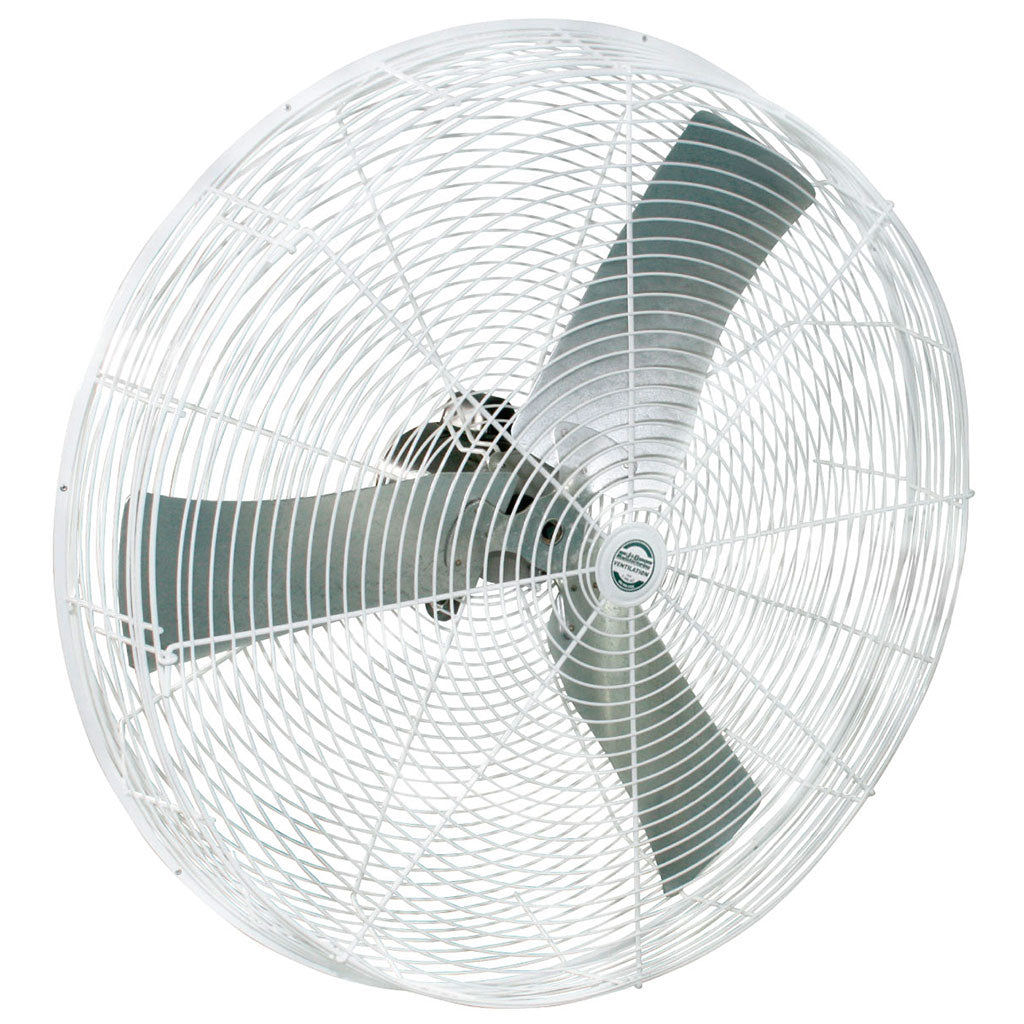

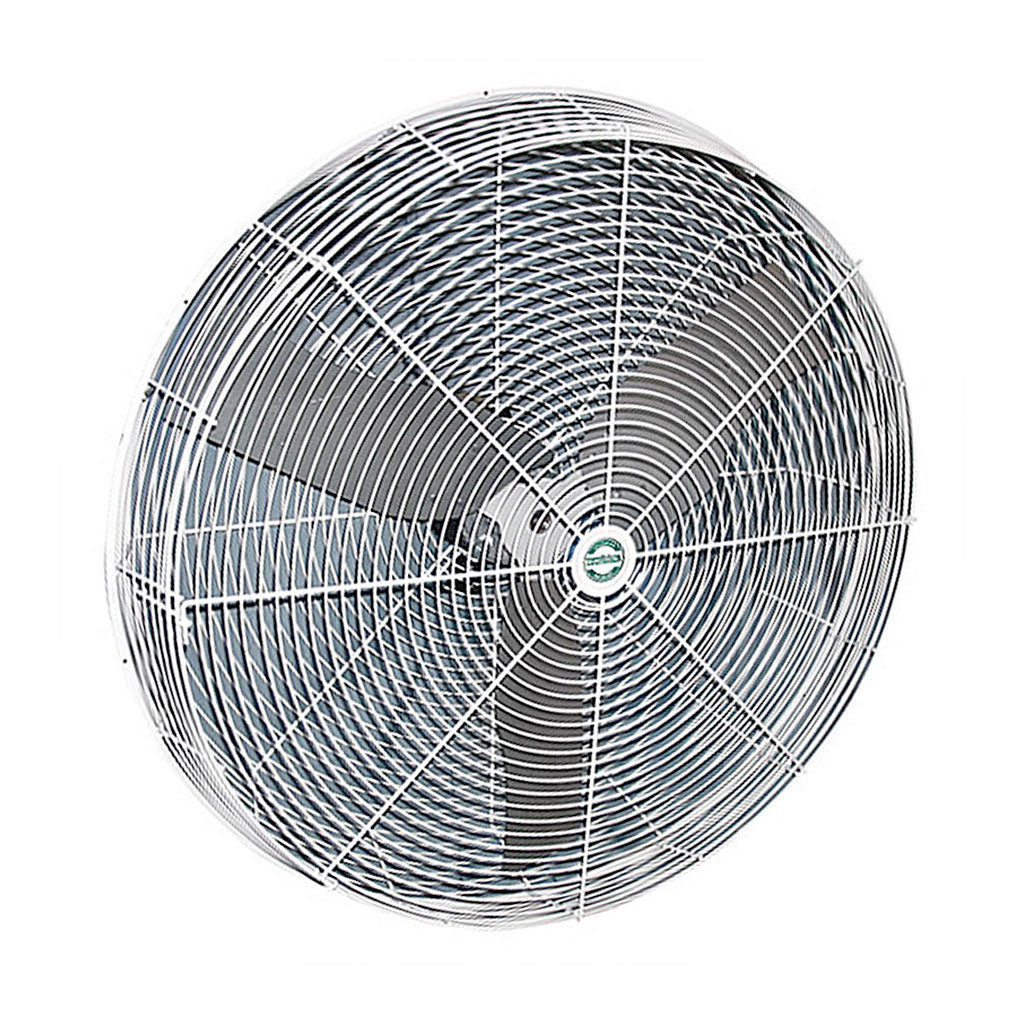

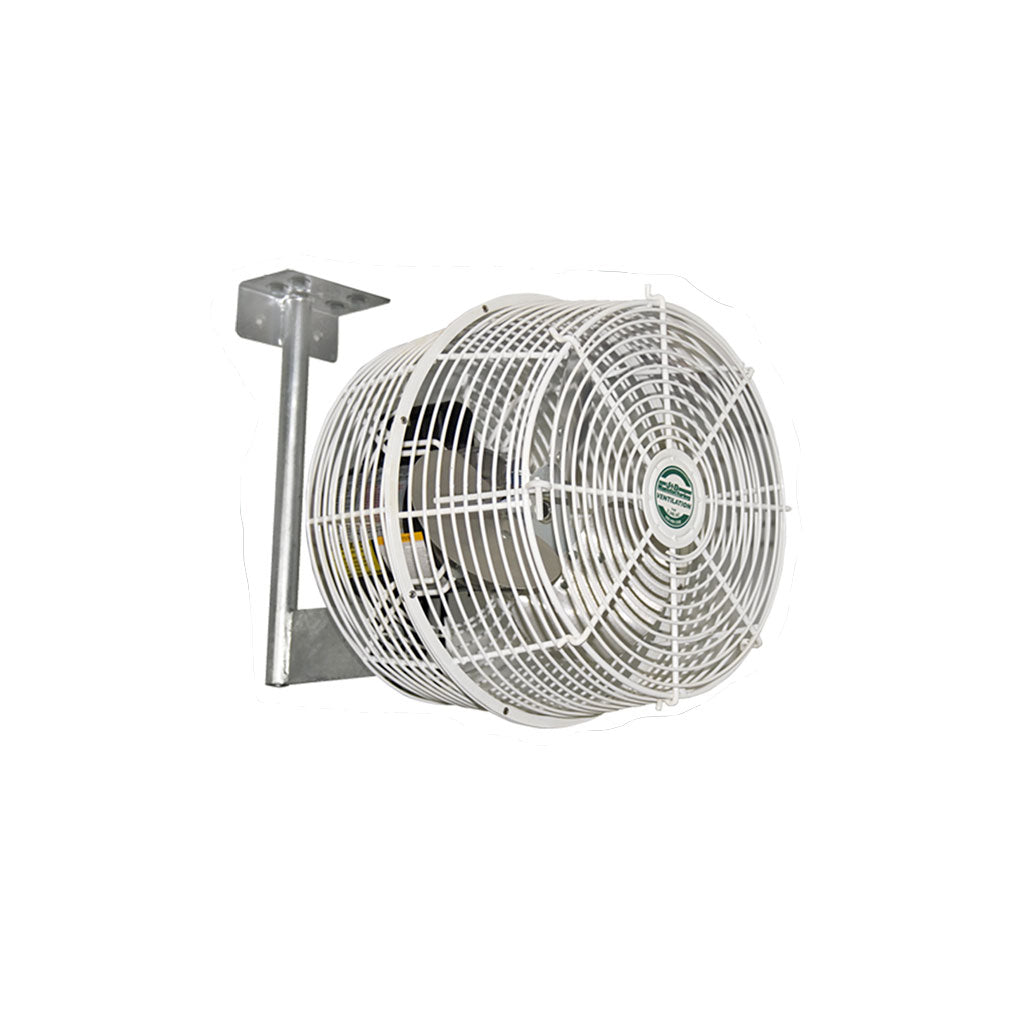

The Barnstormer is the perfect air flow solution for any agricultural application. The special patented design of this fan provides constant temperature, controls flies, controls ammonia gases and eliminates condensation while reducing heat stress. The Barnstormer is the only fan on the market with an Exclusive Open Front Feature. This unique design helps reduce cleaning and maintenance time by 75%. Hay, straw, chicken feathers or dust build up removed in just a minute. Includes white epoxy coating and adjustable tilt bracket.
The Barnstormer comes in 12", 20", 24", or 36" diameters. 36 inch fan maintains a 3.5 MPH wind at 35 feet.
Standard Features
- Provides constant temperature
- Controls flies
- Eliminates condensation
- Stabilizes production
- Reduces heat stress
- Controls odors caused from ammonia gases
- Lowers maintenance cost up to 75%
- No hot or cold spots throughout the building
- Complete distribution of air in every direction, going under, over and in-between the animals
- Optional 6-way mounting bracket available
Performance Data
| Model No. |
Size |
HP | Thrust CFM |
Thrust CFM/Watt |
Prop | RPM | Volts | Phase | Speed |
|---|---|---|---|---|---|---|---|---|---|
| VBS12 | 12" | 1/10 | 810 |
7.2 | 3-Alm | 1690 | 115/230 | 1 | Variable |
| VBS20 | 20" | 1/3 | 3,650 | 11.8 | 3-Alm | 1691 | 115/230 | 1 | Single |
| VBS24 | 24" | 1/2 | 5,250 | 12.1 | 3-Alm | 1666 | 115/230 | 1 | Single |
| VBS36A | 36" | 1/2 | 10,050 | 17.6 | 3-Glv | 844 | 115/230 | 1 | Single |
| VBS36CF | 36" | 1/2 | 10,000 | 20.3 | 3-Glv | 846 | 230/460 | 3 | Single |
Placement Diagram
Based on a 12" Fan
